Zyxel POE (Power Over Ethernet)

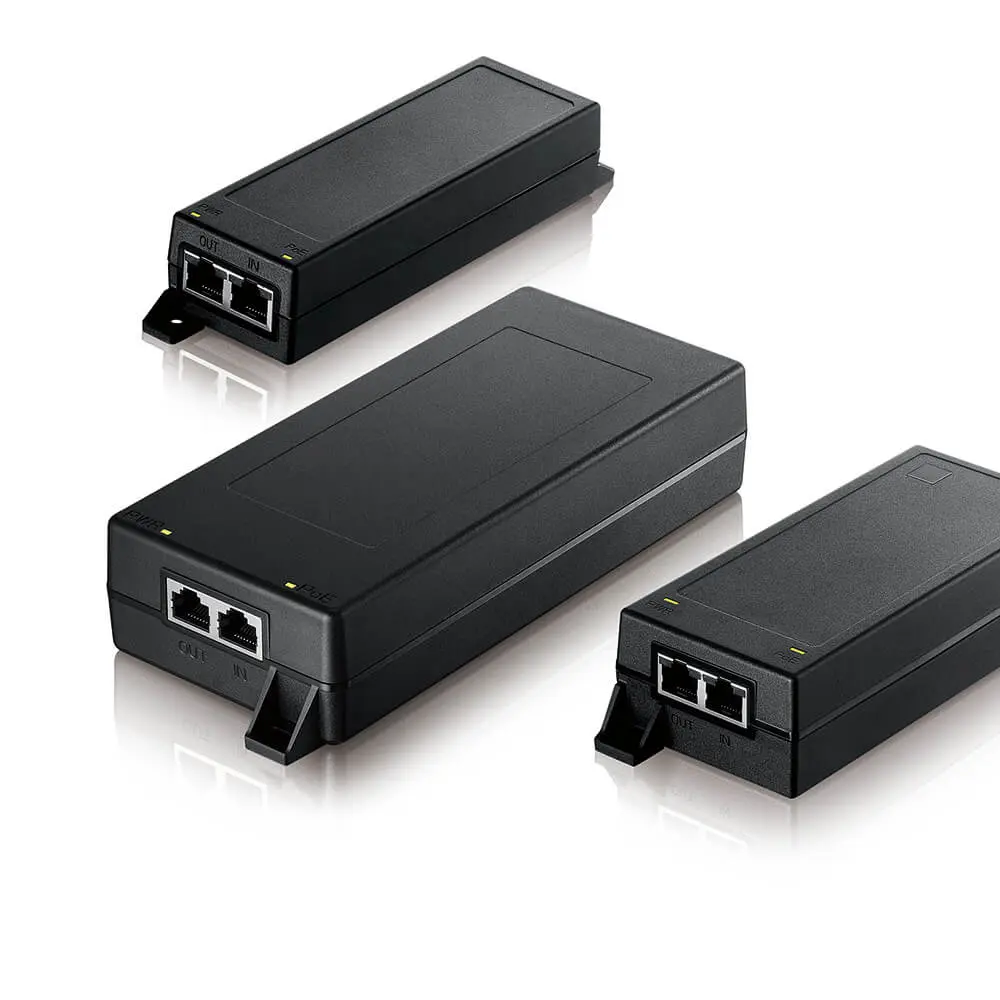

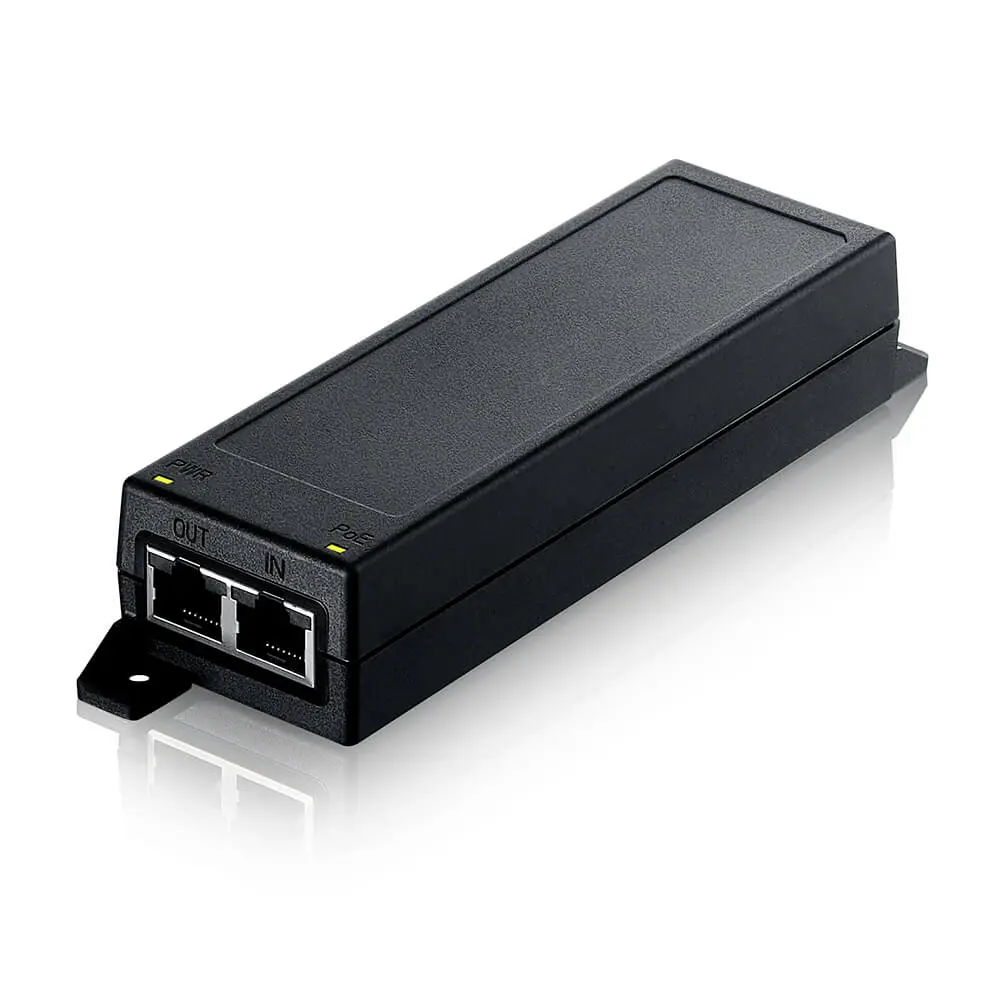

The Zyxel PoE12-30W/60W/90W series of Power over Ethernet (PoE) injectors delivers both data and power to your network devices over a single Cat 5e (or higher) cable, eliminating the need for separate power outlets and reducing deployment complexity and cost. Available in three models—PoE12-30W (PoE+), PoE12-60W (PoE++), and PoE12-90W (PoE++)—this lineup supports increasingly demanding applications from standard access points to high-performance WiFi 6/7 APs and PTZ cameras .

Key Benefits

• Simplified Deployments: Power and data over one cable—no power-socket restrictions.

• Future-Ready Speeds:

  • PoE12-30W: 2.5 GbE

  • PoE12-60W: 5 GbE*

  • PoE12-90W: 10 GbE
    (*10 GbE speeds over Cat 6a up to 30 m)

• Flexible Power Budgets: Up to 30 W, 60 W, or 90 W to support everything from IP phones to multi-radio APs.

• Easy Installation: Plug-and-play for desktop or wall-mount setups—ideal for office expansions or retrofits .

• Robust Protection: Built-in overload and short-circuit safeguards to protect connected devices.

Core Features

• PoE Standards:

  • PoE12-30W: IEEE 802.3at PoE+

  • PoE12-60W & PoE12-90W: IEEE 802.3bt PoE++

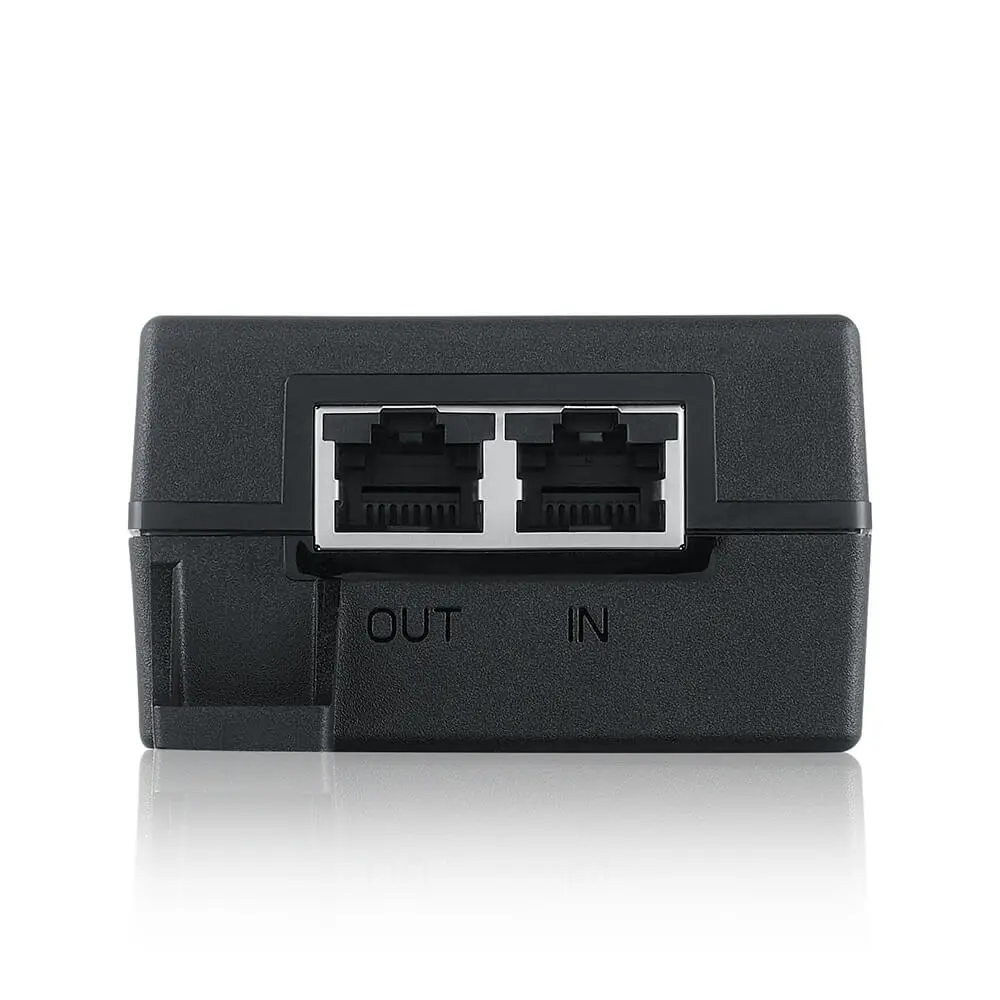

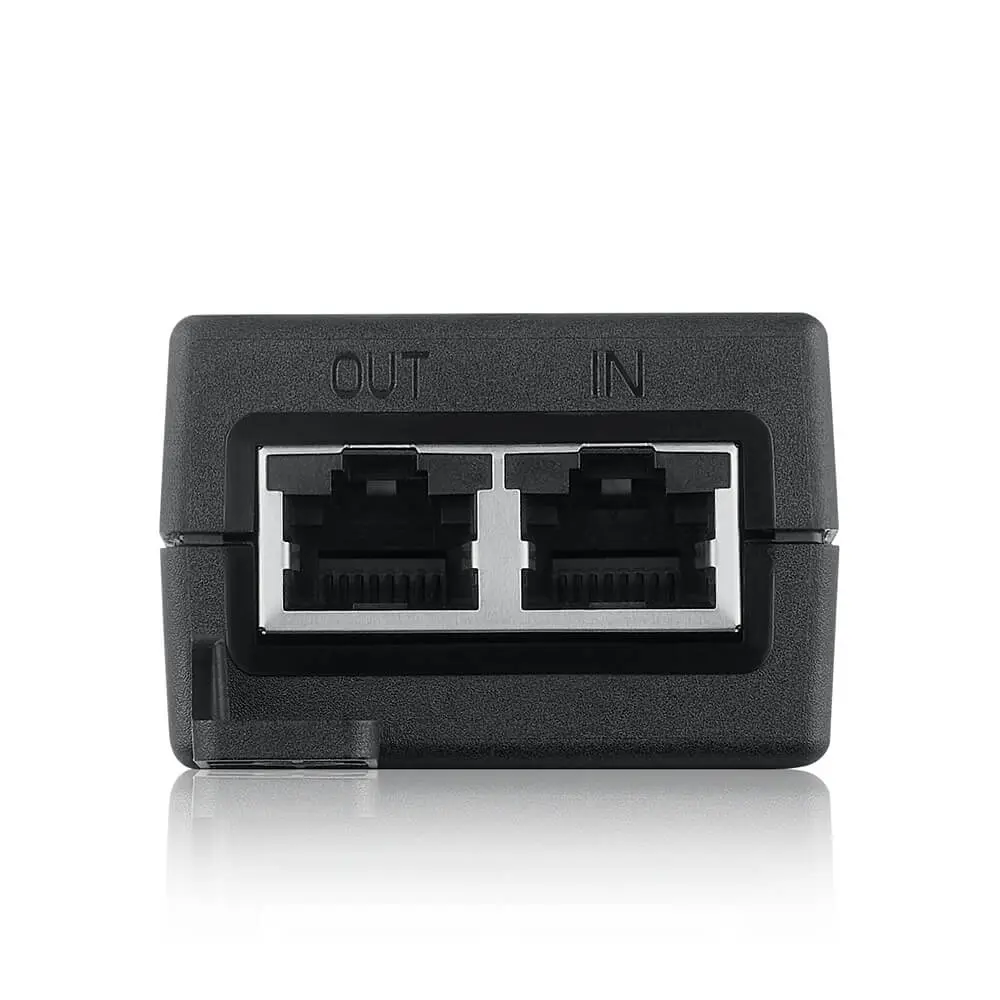

• Port Configuration (Total ports: 2)

  • Data-only port

  • PoE+ or PoE ++ port for simultaneous data & power

• Compact Form Factor: Lightweight, space-saving design for versatile placement.

• Wide Operating Range: –10 °C to 45 °C with non-condensing humidity tolerance.

Typical Applications

• Wireless LAN Expansion: Deploy WiFi 6/7 access points where PoE switches are unavailable.

• Surveillance Systems: Power PTZ and advanced IR cameras without local outlets.

• VoIP & Unified Communications: Simplify installs of IP phones, intercoms, and conferencing devices.
